Product Name

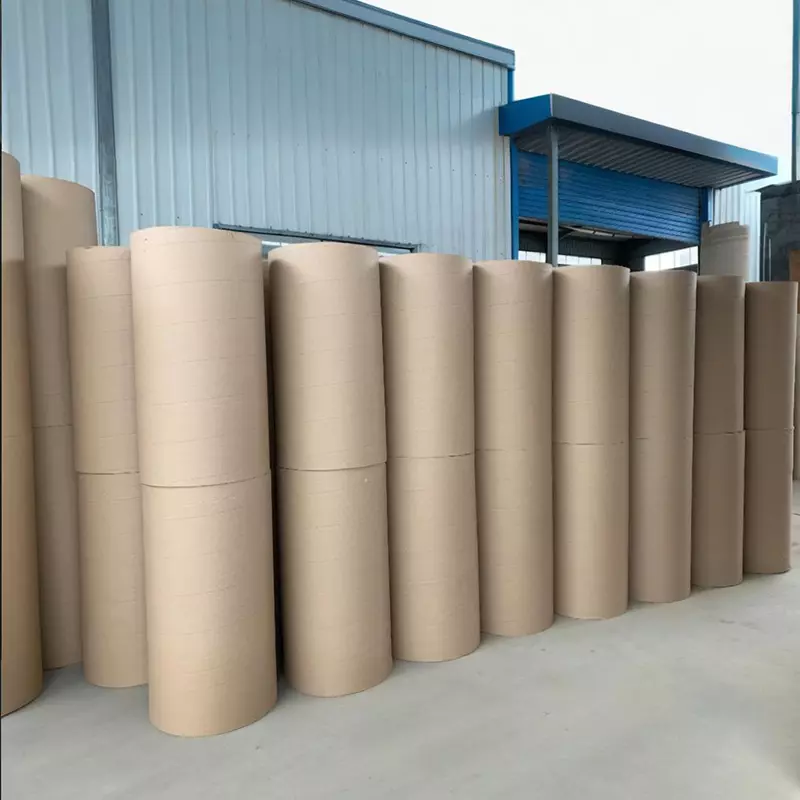

Steel paper tube (steel core/industrial paper tube)

Product Overview

Steel coil paper tubes are high-strength paper coil cores specially designed for the steel industry. They are used to support and wind steel coils (cold-rolled steel coils, hot-rolled steel coils, galvanized steel coils, etc.), protecting the steel coils from deformation during transportation and storage, and facilitating mechanical handling at the same time.

Product features

High-strength load-bearing capacity

It is rolled with multiple layers of thickened kraft paper or high-strength yarn tube paper, with a dynamic compressive strength of 5 to 20 tons (depending on the specification), and has better static load-bearing capacity.

It has a high surface hardness, is impact-resistant, and can prevent the edges of the steel coil from being damaged by bumps.

Precise size fit

Inner diameter range: φ508mm (20 inches), φ610mm (24 inches) (Other sizes can be customized).

Wall thickness: 10-30mm, length customized according to the width of the steel coil (commonly 1-2 meters).

Moisture-proof and rust-proof

Some products have undergone waterproof coating treatment (such as polyethylene film coating) to prevent the paper tubes from getting damp and softening, and to reduce the risk of rusting at the contact surface between the steel coil and the paper tube.

Environmental protection and economy

100% recyclable and degradable materials, meeting environmental protection requirements, with a lower cost than metal or plastic core rolls.

Light in weight, it reduces transportation costs and is easy to operate.

Materials and Craftsmanship

Raw materials: High-strength kraft paper/tube paper + environmentally friendly adhesive (conforming to GB/T 1545 standard).

Process: Spiral winding or flat winding technology, formed through high-temperature curing to ensure firm interlayer bonding.

Application scenarios

Steel manufacturing industry: Inner lining support for cold-rolled, hot-rolled, stainless steel, silicon steel and other coil materials.

Logistics and transportation: It can replace wooden or metal core rolls and is suitable for shockproof packaging in sea and land transportation.

Storage: When stacked vertically, keep the steel coils stable to reduce the occupation of storage space.

Technical parameters (Example

Standard values of parameter items

Inner diameter (ID) : 508mm/610mm (customizable)

The wall thickness is 15 to 25mm

Length as per customer requirements (Max 3m)

Moisture content ≤10%

Compressive strength ≥8000N/cm² (axial)

Customer value

Protect steel coils: Reduce edge collapse and scratches, and improve product delivery quality.

Automation compatibility: Compatible with uncoiling machines and hoisting equipment to enhance production efficiency.

Customized services: We offer personalized demands such as printing enterprise logos and anti-slip stripes.
